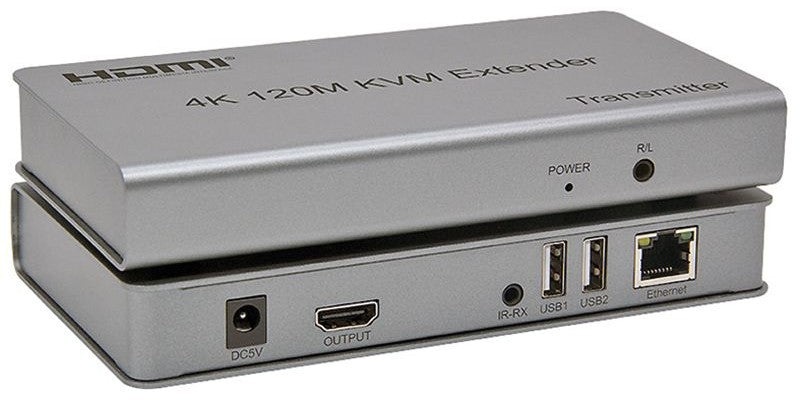

HDMI EXTENDER CAT 6 KVM HDMI+USB 1.4V 120M

HDMI EXTENDER VIA CABLE CAT6 120M KVM HDMI + USB

This HDMI signal repeater allows you to extend the HDMI audio / video signal over long distances over a single CAT6 LAN cable.
It supports high resolution up to 1080p, and thanks to the 2 USB ports it is also possible to transmit the USB signal from the keyboard and mouse; perfect solution for the PC but also for the NVR of a video surveillance system that can now be installed and managed over a long distance (max 150m) with a high resolution HD video (up to 1080i / p).
With "loop-out" function for the management of a second monitor, and repetition of the remote control signal.
A USB cable with type "B" connector is required for PC connection (not included).
Features:
Video Resolution: 480i / p, 576p, 720p, 1080i / p;
Compliant with HDMI 1.3 and HDCP 1.2 standard;
Automatic adjustment system to make the image smooth, clear and stable;
Power supply: power supply included
IMPORTANT:
1) Use high quality LAN cables (if you use a long distance CAT6 with 100% copper conductor is better)
2) If the LAN cable must pass through existing corrugations, check that there are no other cables that could give interference and / or disturbances;
3) The transmitter and the receiver must be placed in cool places and as ventilated as possible in order to best dissipate the heat.
4) If you use all the declared meters, the HDMI cables must not exceed one meter in length (better from 0.50m and of quality, with copper conductors).

Version:                         HDMI 1.4
Max Resolution:            Ultra HD 4k @ 30Hz
Trasmission Distance:  120 Meters
