POE & LAN TESTER PROSKIT

POE & LAN TESTER PROSKIT

PoE Tester

Easily tests Ethernet network for power over Ethernet existence

Quickly detects the type of the Power Sourcing Equipment (either Endspan or Midspan)

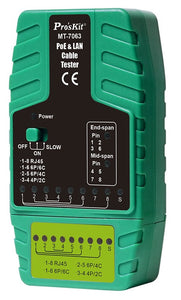

MT-7063 is a economy type only for detecting Midspan/Endspan.

MT-7064 is an advanced type which can easily identify IEEE 802.3 af/at PoE standard and Midspan/Endspan.

Cable Tester

Check the RJ11/RJ12/RJ45 pin to pin cable map

Automatically runs all tests and checks for continuity, open, short and crossover wire pairs

Cable mapping up to 300M

Specifications

Max. distance of cable map: 300m

Compatible connectors:        RJ45(8 pin) & RJ11(6P/6C/4C/2C) & RJ12 & PoE

Cable types tested:                RJ45 Lan cable Cat 5、5e、6(UTP/STP)

                                           RJ11/12 Telephone Cable Cat 3 (6P/2C/4C/6C)

Cable map indication:            8 LED，Fast/Slow dual speed

Shielded indication:                Yes

PoE indication(Master):        Midspan/Endspan

Live telecommunication

equipment test and router test:                      Yes

Dimension (L×W×D):           Master：94×66×35 mm , Remote：32×64×34 mm

Battery type    DC 9.0V:     （Not including battery)

Weight:           125g
