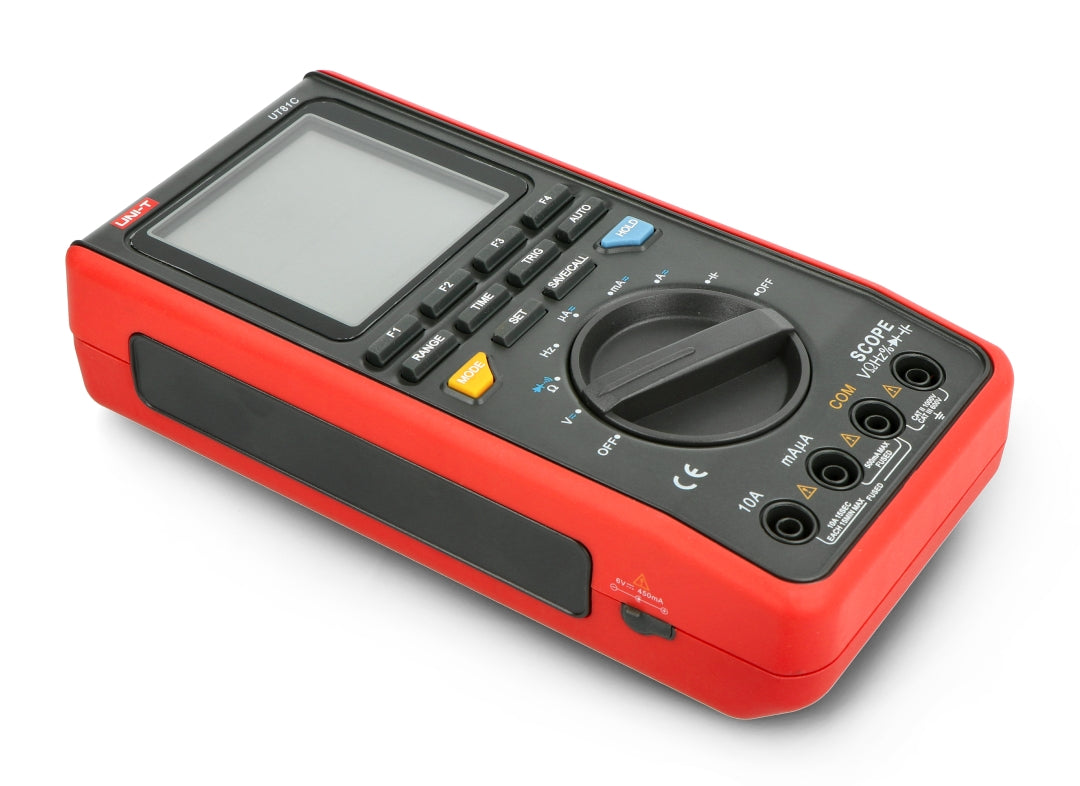

SCOPE DIGITAL MULTIMETER 16MHz UT81C UNI-T
Code 99.6505SCOPE DIGITAL MULTIMETER UT-81C
| Specifications | Range | UT81C |
| DMM Specifications | ||
| DC voltage (V) | 1000V | ±(0.8%+8) |
| AC voltage (V) | 750V | ±(1%+15) |
| DC current (A) | 10A | ±(1%+8) |
| AC current (A) | 10A | ±(1.5%+8) |
| Resistance (Ω) | 40MΩ | ±(1%+5) |
| Capacitance (F) | 100μF | ±(3%+8) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) |
| Scope Specifications | ||
| Bandwidth | 16MHz | |
| Sampling rate | 80MS/s | |
| Vertical accuracy | ±(5%+1) | |
| Vertical sensitivity | 20mV/div~500V/div (1-2-5) | √ |
| Time-base accuracy | ±(0.01%+1) | |
| Time-base range | 50ns/div - 5s/div(1-2-5) | |
| Features | ||
| Display count | 4000 | |
| Auto range | √ | |
| Duty cycle | 0.1~99.9% | √ |
| Diode | √ | |
| Auto power off | √ | |
| Continuity buzzer | √ | |
| Display | 160 x 160 monochrome | √ |
| Trigger types | Auto run/Normal/Single shot | √ |
| Memory | 10 screens and setups | √ |
| Contrast and brightness setup | √ | |
| Low battery indication | √ | |
| USB interface | √ | |
| LCD backlight | √ | |
| Input impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 4 | |
| Display | 60mm x 60mm | |
| Product color | Red and grey | |
| Product net weight | 498g | |
| Product size | 200mm x 100mm x 48mm | |

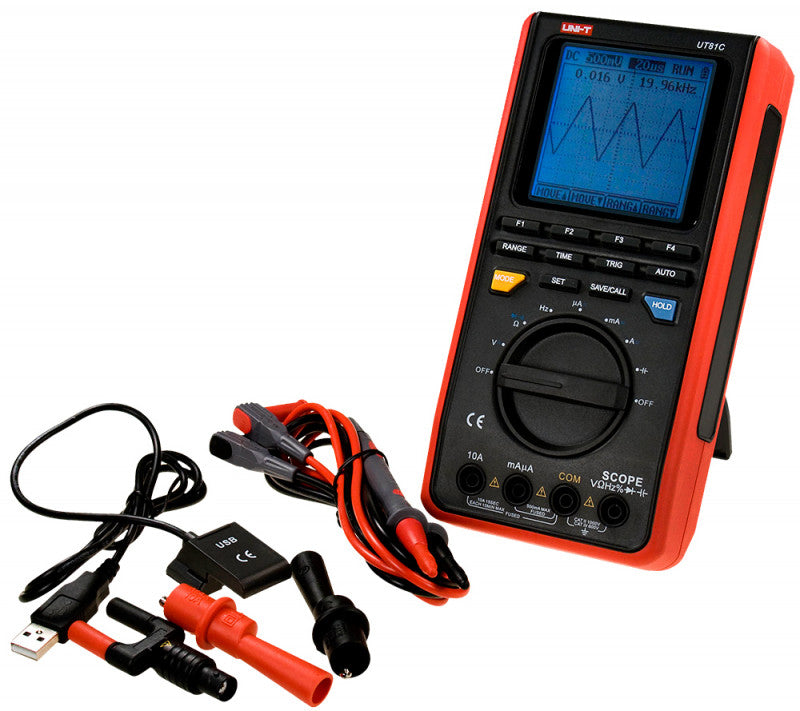

| Standard accessories | Batteries, test lead, alligator clip, USB interface cable, PC software CD | |
