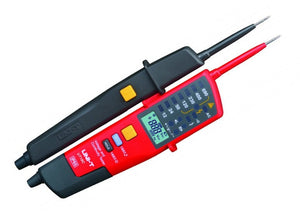

PEN TYPE MULTIMETER
Code 99.6422PEN TYPE MULTIMETER
| Specifications | Range | UT18C |
| Voltage (V) | 12V | 8V±1V |
| 24V | 18V±2V | |
| 50V | 38V±4V | |
| 120V | 94V±8V | |
| 230V | 180V±14V | |
| 400V | 325V±15V | |
| 690V | 562V±24V | |
| Phase rotation test | 57Vac～400Vac (3 phase) | √ |
| Frequency: 50Hz~400Hz | ||
| Single lead (L2) voltage detection |
Operating voltage: 100V~690V | √ |
| Frequency: 50Hz~400Hz | ||
| Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ |
| Beeper and LED light indication | ||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | √ |
| Polarity detection | Positive & Negative | √ |
| Self-inspection | All LED or LCD | √ |
| No power test | Operating voltage: 100~690V | √ |
| Features | ||
| Voltage indication | LED | |
| Exceed voltage | Voltage range: 713V~788V | √ |
| Auto standby | Standby current＜10μA | √ |
| Slient mode | All range | √ |
| Work light | √ | |
| Low battery indication | Around 2.5V | √ |
| LCD display (voltage) | 6V~690V | ±(1.5%+5) |
| LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) |
| IP65 | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03)×2 | |
| Display | UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm | |
| Product color | Red and grey | |
| Product net weight | 280g | |
| Product size (W x H x D) | 272mm x 85mm x 31mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
